Create a cumulative ranking plot in RaCE NMA models — create

This function creates a cumulative ranking plot in the form of a ggplot.

create_cumulativeranking(mcmc, names = NULL)

Arguments

mcmc: MCMC draws from the RaCE NMA model, in the form of the model output of the mcmc_RCMVN function.
names: A vector of intervention names (optional)

Value

A ggplot of a cumulative ranking plot.

Examples

mcmc <- mcmc_RCMVN(ybar=c(0,0,1,1), s=c(.1,.1,.1,.1), mu0=0.5, sigma0=5, tau=0.5,chains=2,seed=1)
#> [1] "Estimating chain 1 of 2."
#> [1] "Estimating chain 2 of 2."

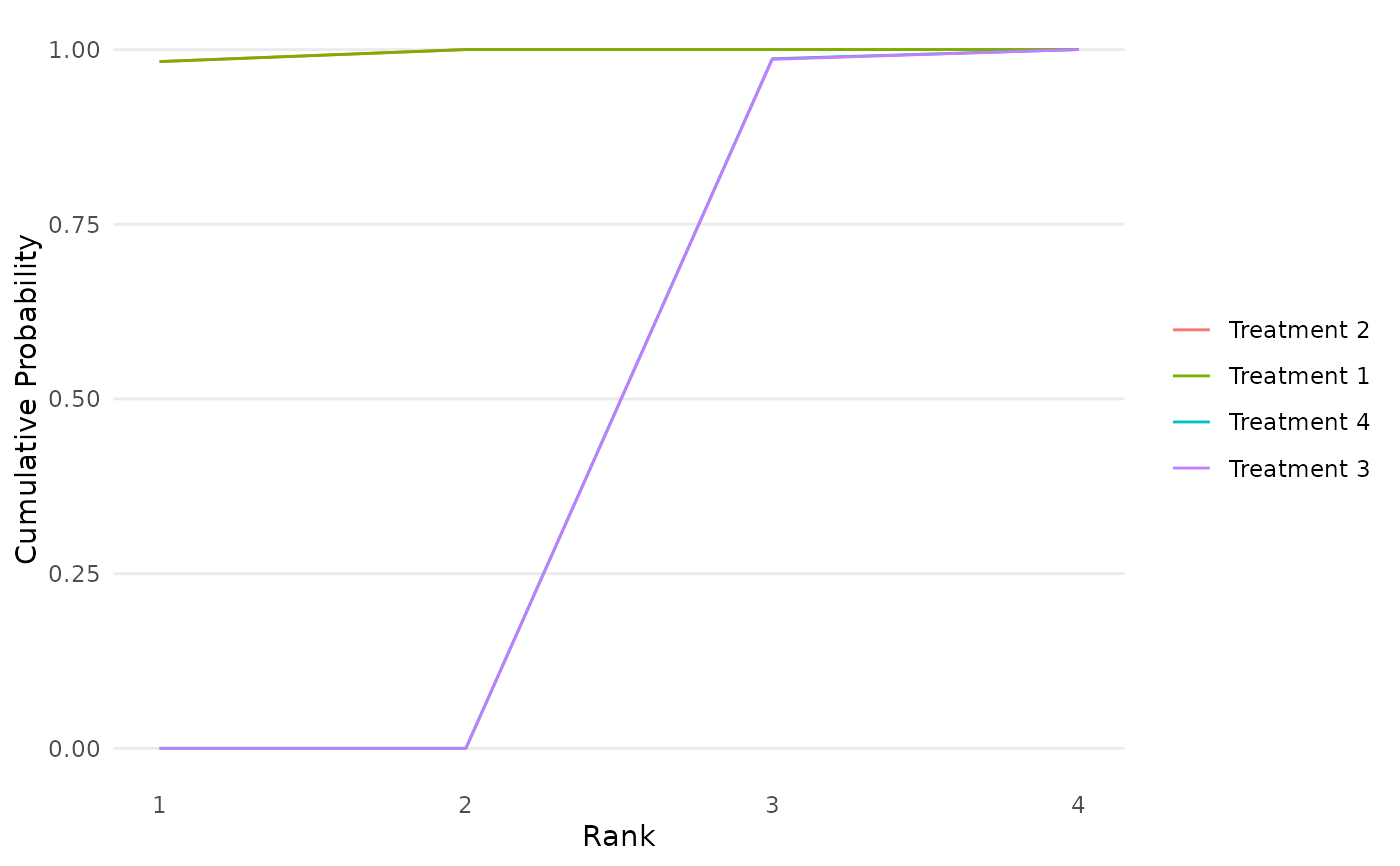

create_cumulativeranking(mcmc,names=paste0("Treatment ",1:4))
#> Warning: `label` cannot be a <ggplot2::element_blank> object.
